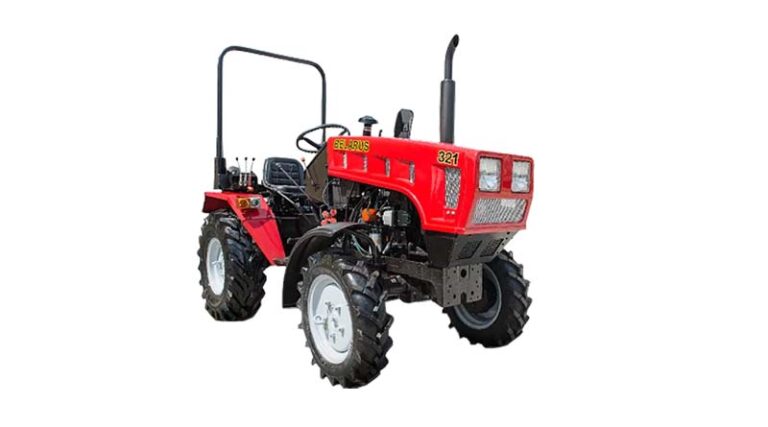

BELARUS-321/321M

01 March 2024, New Delhi: This tractor are intended for various agricultural operations coupled with mounted, semi-mounted and trailed machines, for hauling operations and for operations in industry.

Small dimensions allow using the tractor in greenhouses and small rooms.

Environmental standard Stage IIIa.

Model : «LOMBARDINI»/MM3-3LD

Power, kW (h.p.) : 26 (36)

Technical characteristics:

ENGINE
Type	Diesel
Model	«LOMBARDINI» LDW1603/B3 (Italy) / MM3-3LD (Belarus)
Power, kW (h.p.)	26 (36)
Crankshaft rated speed, rpm	3000
Number of cylinders, pcs.	3
Displacement, l	1,649/1,600
Maximum torque, Nm	92/94
Factor of torque backup, %	12/20
Fuel tank capacity, l	25
TRANSMISSION
Clutch	Dry, single-disk, friction, spring-loaded
Gearbox	Mechanical, fixed-ratio with constant-mesh gears, with easy-engagement toothed clutches, dual-range, with step-down reduction gear group
Number of gears: forward/reverse	16/8
Travel speed: forward/reverse, km/h	1,0-25,2/1,8-13,3
Rear PTO:
Continuous I, rpm	540
Continuous II, rpm	1000
Master drive	Spiral bevel gears
Rear axle differential	Bevel gear-type with 2 satellite gears
Final drives	Single-reduction gear units with spur gears
HYDRAULIC LIFT LINKAGE
Versatile, remote-cylinder, implements are attached by means of pins to pivots of longitudinal (lower) links and central link
Lifting capacity at suspension point, kg	1100
Maximum pressure, MPa	20
Pump performance,l/min	17
Hydraulic system capacity, l	11
DIMENSIONS AND WEIGHT
Overall length, mm	3050
Width, mm	1550
Height to cabin top, mm	2280
Tractor base, mm	1690
Track, mm:
Front wheels	1060; 1210
Rear wheels	1000; 1160
Agrotechnical clearance, mm	435
Least turning radius, m	3,6
Operating weight, kg	1500
Tire sizes:
Front wheels	7,5L-16
Rear wheels	12,4L-16
Wheel arrangement	4×4

Additional Options

• TSU-2 tow hitch (hydraulic hook);
• Combined trailing appliance (pendulum and hydraulic hook);
• Rear wheel ballast weights;
• Front ballast weights;
• Fast-coupling cutoff clutches;
• Hitch hoses.
