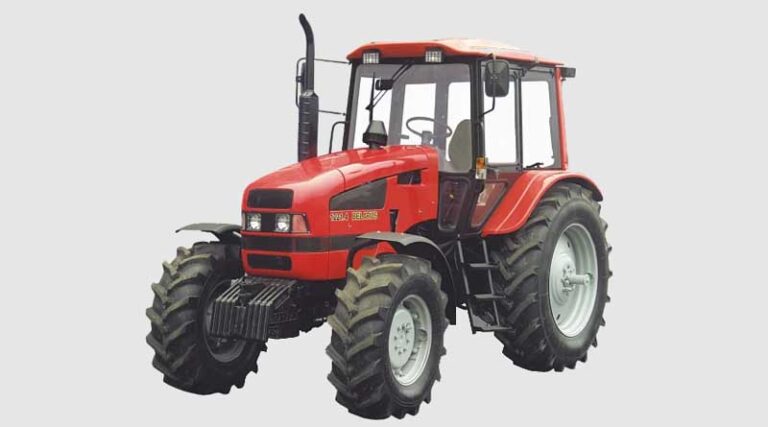

BELARUS-1221.4

01 March 2024, New Delhi: The tractor is designed for various agricultural operations with mounted, semi-mountedandtrailedmachines and implements, for transport operations.

Capacity : 131,7/96,9 h.p/kW

Axle arrangement : 4K4

Number of gears FWD/BWD : 16/8 (24/12)

Technical characteristics:

ENGINE
Type	Diesel with “Common Rail” electronic injection system and turbocharging
Capacity, h.p/kW	131, 7 / 96, 9
Brand mark	D-260.2S3A
Ecological standard	Stage III?
Fuel use, g/(kW·h)	235,0 ± 7,0
Torque capacity, ?·m2	570
TRANSMISSION SYSTEM
Number of gears FWD/BWD	16/8 (24/12)
Back PTO shaft, min-1	540/1000
HYDRAULICS
Load-carrying capacity of back suspension gear on suspension axis, kg, minimum	4300
Full scale pressure, MPa	20-2
Pump displacement at nominal speed of diesel crankshaft, l/min, minimum	51
Hydraulics reservoir capacity, l	28,5 ± 0,5
UNDERCARRIAGE
Type	Wheeled
Axle Arrangement	4?4
TYRES
Fron	420/70R24
Back	16.9R38;18, 4R38
OTHER SPECIFICATIONS
Maximum weight, kg	8000
Climatic modification	?1
Minimum and maximum speed FWD/BWD, km/h	Min 1,54/2,75; Max 35,0/16,4

Specificity of the model

Diesel engine complies with Stage Ilia ecological requirements according to emissions of hazardous substances.

Additional options

• Mechanical, fixed-ratio, synchronized gearbox (24/12);
• Mechanical creeper;
• Front hitch;
• Front PTO (with engine from “Minsk Motor Plant”);
• Air conditioner;
• Front ballast with overall mass up to 1025 kg;
• Brakes operating in oil reservoir;
• Right-side cab step.
