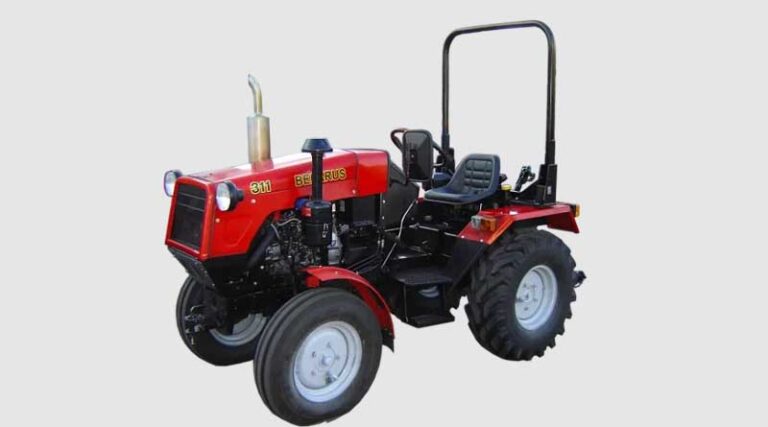

BELARUS-311/311M
01 March 2024, New Delhi: This tractor are intended for various agricultural operations coupled with mounted, semi-mounted and trailed machines, for hauling operations and for operations in industry.
Small dimensions allow using the tractor in greenhouses and small rooms.
BELARUS – 311M has an environmental standard Stage IIIa.
Model : 3T30/MM3-3LD
Power, kW (h.p.) : 24 (33)/26 (36)
Technical characteristics:
| ENGINE | |
|---|---|
| Type | Diesel |
| Model | 3?30 (China)/??Z-3LD (Belarus) |
| Power, kW (h.p.) | 24 (33)/26 (36) |
| Crankshaft rated speed, rpm | 3000 |
| Number of cylinders, pcs. | 3 |
| Displacement, l | 1,649/1,600 |
| Maximum torque, Nm | 100/94 |
| Factor of torque backup, % | 12/20 |
| Fuel tank capacity, l | 25 |
| TRANSMISSION | |
| Clutch | Dry, single-disk, friction, spring-loaded |
| Gearbox | Mechanical, fixed-ratio with constant-mesh gears, with easy-engagement toothed clutches, dual-range, with step-down reduction gear group |
| Number of gears: forward/reverse | 8/4 |
| Travel speed: forward/reverse, km/h | 3,1-25,2/5,5-13,3 |
| Rear PTO: | |
| Continuous I, rpm | 540 |
| Master drive | Spiral bevel gears |
| Rear axle differential | Bevel gear-type with 2 satellite gears |
| Final drives | Single-reduction gear units with spur gears |
| HYDRAULIC LIFT LINKAGE | |
| Versatile, remote-cylinder, implements are attached by means of pins to pivots of longitudinal (lower) links and central link | |
| Lifting capacity at suspension point, kg | 870 |
| Maximum pressure, MPa | 20 |
| Pump performance,l/min | 17 |
| Hydraulic system capacity, l | 10 |
| DIMENSIONS AND WEIGHT | |
| Overall length, mm | 3050 |
| Width, mm | 1300 |
| Height to cabin top, mm | 2280 |
| Tractor base, mm | 1660 |
| Track, mm: | |
| Front wheels | 1000; 1200; 1350 |
| Rear wheels | 1000; 1160 |
| Agrotechnical clearance, mm | 435 |
| Least turning radius, m | 3, 6 |
| Operating weight, kg | 1500 |
| Tire sizes: | |
| Front wheels | 6,5-16 |
| Rear wheels | 12,4L-16 |
| Wheel arrangement | 2×4 |
Additional Options:
- Front lift linkage;
- Front PTO with shaft shank;
- Front ballast weights;
- Front driving axle, with function of automatic engagement in case of rear wheel skidding.
