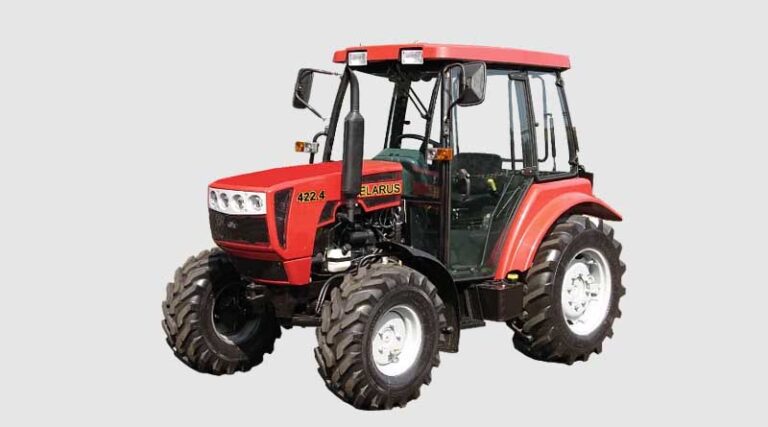

BELARUS-422.4

01 March 2024, New Delhi: This tractor is intended for various agricultural operations coupled with mounted, semi-mounted and trailed machines, for hauling operations and for operations in industry.

Small dimensions allow using the tractor in greenhouses and small rooms, low-contour land plots.

The BELARUS 422 tractor is made on the base on BELARUS 622 tractor.

Environmental standard Stage IIIa.

Model : «LOMBARDINI» LDW2204

Power, kW (h.p.) : 36,6 (50)

Technical characteristics:

ENGINE
Type	Four-stoke diesel engine
Model	«LOMBARDINI» LDW2204
Power, kW (h.p.)	36,6 (50)
Crankshaft rated speed, rpm	3000
Number of cylinders, pcs.	4
Displacement, l	2,07
Maximum torque, Nm	125
Specific fuel consumption at operating power, g/kWh	329
Factor of torque backup, %	15
Fuel tank capacity, l	90
TRANSMISSION
Clutch	Dry, single-disk
Gearbox	Mechanical, with easy-engagement clutches
Number of gears: forward/reverse	16/8
Travel speed: forward/reverse, km/h	1,2-36,6/2,1-19,5
Rear PTO:
Continuous I, rpm	540
Continuous II, rpm	1000
Ground-speed I, rev/m of travel	3,2
Ground-speed II, rev/m of travel	6
HYDRAULIC LIFT LINKAGE
Versatile, remote-cylinder
Lifting capacity at suspension point, kg	2800
Maximum pressure, MPa	20
Pump performance,l/min	40
Hydraulic system capacity, l	22
DIMENSIONS AND WEIGHT
Overall length, mm	3450
Width, mm	1700
Height to cabin top, mm	2380
Tractor base, mm	1390
Track, mm:
Front wheels	1390,1530
Rear wheels	1410, 1510, 1560, 1660, 1730 ,1830
Agrotechnical clearance, mm	560
Least turning radius, m	3,9
Operating weight, kg	4000
Tire sizes:
Front wheels	12,4R-16
Rear wheels	360/70R24
Wheel arrangement	4×4

Additional Options

• Front lift linkage;
• Front PTO with shaft shank;
• Front ballast weights;
• Hitch hoses;
• TSU-1M tow hitch;
• Bracket with cutoff clutches.
