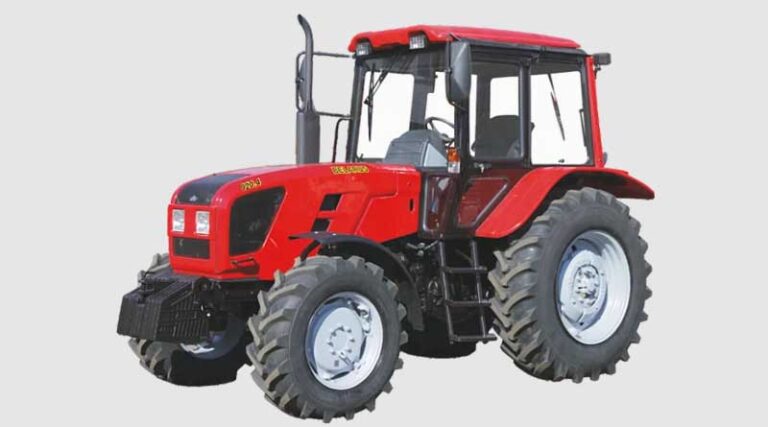

BELARUS-900.4/920.4

01 March 2024, New Delhi: The tractor is intended for various agricultural operations with mounted, semi-mounted and trailed machines and implements, for hauling operations.

BELARUS-900.4 tractor with front non-driving axle.

BELARUS-920.4 tractor with front driving axle with planetaryspur gear groups.

Environmental standard Stage IIIa.

Model : D-245.4S3A

Power, kW (h.p.) : 62 (84)

Wheel Arrangement : 4?2/4×4

Technical characteristics:

ENGINE
Type	Diesel engine with CommonRail or Mercer fuel injection system, with turbocharge and intercooler
Model	D-245.4S3A
Power, kW (h.p.)	62 (84)
Crankshaft rated speed, rpm	1800
Number of cylinders, pcs.	4
Displacement, l	4, 75
Maximum torque, Nm	411
Specific fuel consumption at operating power, g/kWh	235
Factor of torque backup, %	25
Fuel tank capacity, l	135
TRANSMISSION
Clutch	Dry, single-disk
Gearbox	Synchromesh
Number of gears: forward/reverse	14/4
Travel speed: forward/reverse, km/h (with a step-down reduction gear)	2, 6-38, 1 (2, 0-28, 8) / 5, 6-12, 6 (4, 2-9, 5)
Rear PTO:
Continuous I, rpm	540
continuous II, rpm	1000
ground-speed I, rev/m of travel	3, 36
HYDRAULIC LIFT LINKAGE
Remote-cylinder, with hydraulic lift, providing draft, positional, mixed and height adjustment of agricultural implement position.
Lifting capacity at suspension point, kg	4000
Maximum pressure, MPa	20
Pump performance,l/min	45
Hydraulic system capacity, l	28
DIMENSIONS AND WEIGHT
Overall length, mm	4440
Width, mm	1970
Height to cabin top, mm	2850
Track, mm:
Front Wheels	1535-2120
Rear Wheels	1500-2100
Agrotechnical clearance, mm	510
Least turning radius, m	4,5
Fordable depth, m	0, 85
Operating weight, kg	4800
Tire sizes:
Front Wheels	360/70R24
Rear Wheels	18,4R34
Wheel Arrangement	4?2/4?4

Specificity of the model

Front driving axle with planetary-spur gear groups. Renewed interior. Plastic facings of improved design.

Additional options

• Metal-ceramic pads for coupling clutch;
• Double-lever gearbox;
• Creeper;
• Brakes operating in oil bath;
• Additional seat;
• Kit for twinning of rear wheels;
• Ballast weights for rear wheels;
• Air conditioner;
• Reverse reduction unit;
• Step down reduction unit with reverse reduction gear;
• Hydraulic drive for trailer brakes;
• Hydraulic system with hydraulic lift;
• FDA with bevel gear groups.
